Tom Sawyer's

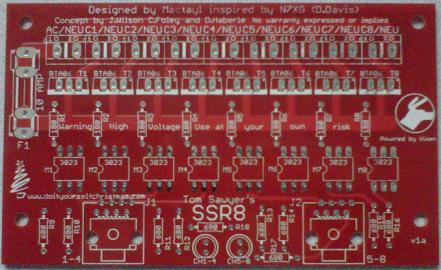

8 Channel Solid State Relay Board



This is a bare board designed to work with many of the Renard controllers such as the Simple Renard 32, or the Renard 64XC.

When you order boards it includes shipping and you may order up to 8 boards per transaction. if you need more, simply order more.

I make no warrantys express or implied with this board. It has been tested according to the current BOM, and works correctly. I only accept Paypal as a payment option.

boards

BOM


IDDescriptionMouser P/NQuantity
P1-P9Tyco Terminal Block 2P Vertical571-79694929
J1-J2RJ45 Jack571-5556416-12
R1-R8180 ohm resistor 1/4 watt660-CF1/4C181J 8
R9-R18680 ohm resistor 1/4 watt660-CF1/4C681J10
M1-M8Optocomponents Optocoupler TRIAC859-MOC30238
M1-M8IC Sockets 6P ECONOMY TIN (Optional!)571-1-390261-18
T1-T8Triacs 4 Amp 700 Volt marked511-BTA04-700T8
F1Fuse Clips and Holders PC FUSE CLIP 5 MM576-05200001M2
Fuse *10 amp504-GMC-101
Fuse CoverFuse Cover (Optional)534-3527C1
LED1/2Red LED604-WP7104IT2

* Note: You should always have extra fuses.
